HoughLines, Canny edges, for OpenCV line detection edges detection in symple described C++ code, where all the steps are visualize and exmplayn. In this tutorial is used Visual studio 2015 instalation by nuget packages. Easy and fast without usual problems with version, dll, and environmental vatiables. Check this tutorial here

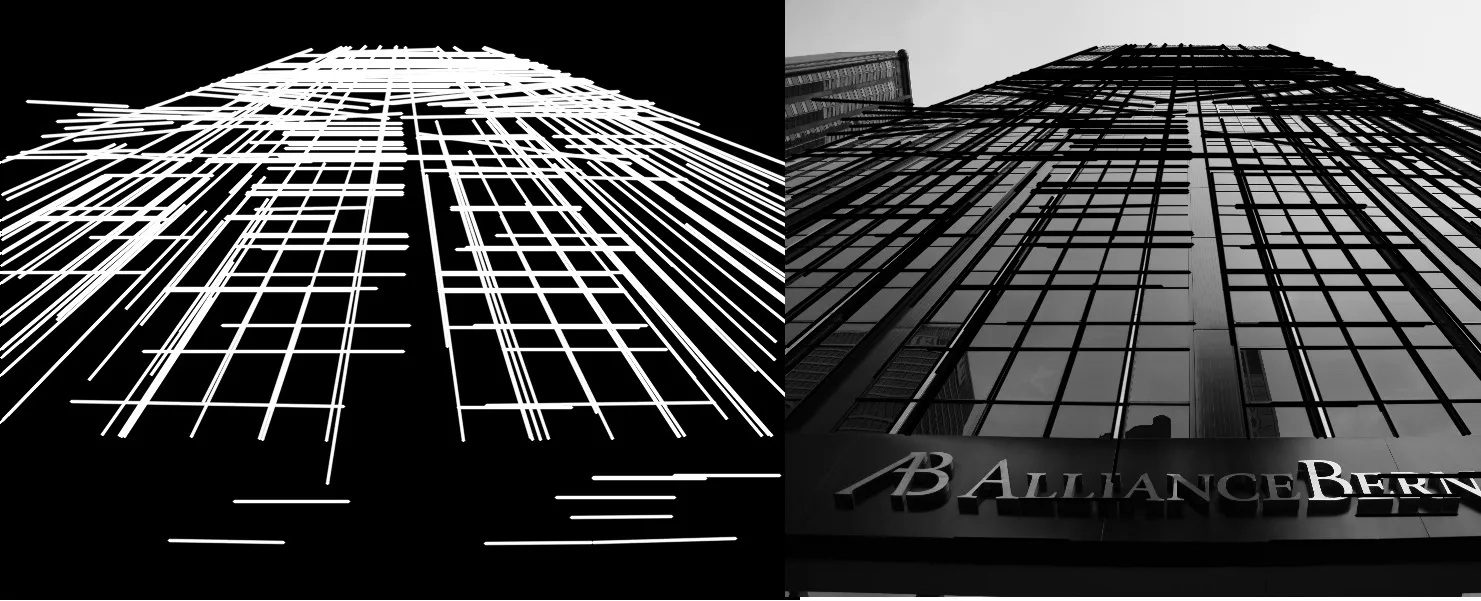

HoughLines hough lines

Sobel derivatives

Sobel derivatives are the convolution of image parts with the kernel that represent Sobel derivative approximation. The upper image is our Sobel kernel. Simple 3 x 3 matrices with these parameters. This configuration can detect edges or changes which is vertically oriented. How?

Convolution of source image 3x3 part with this kernel generates a number.

Kernel Convolution wiki

Use this kernel with 3x3 image part 1. This image matrix has constant values 1. There is no edges in x direction. The number generated by convolution is 0. If you convolve the kernel with the image part 2. There is edges in x direction from 1 to 5. Convolution of the same kernel with this part generates number 16. See the example.

Try to think how simple is this in all directions.

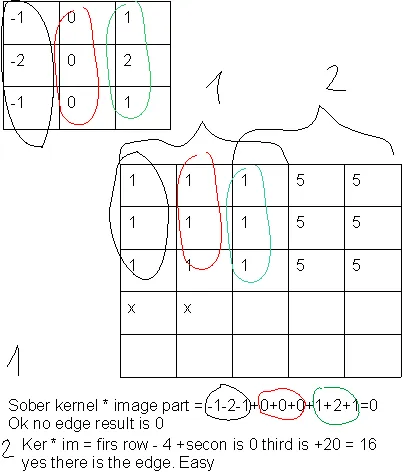

Sobel derivatives convolution

Canny edges, Sobel and Hough lines code

#include <Windows.h> #include “opencv2\highgui.hpp” #include “opencv2\imgproc.hpp” #include “opencv2/imgcodecs/imgcodecs.hpp” #include “opencv2/videoio/videoio.hpp” using namespace cv; using namespace std; int main(int argc, const char** argv) { Mat image;

// Load an image

canny hough lines

image = imread(“1.jpg”, 0); resize(image, image, Size(800, 600)); cv::Mat edges;

// Canny edge cv::Canny(image, edges, 95, 100); imwrite(“edges.jpg”, edges); imshow(“Canny edges”, edges);

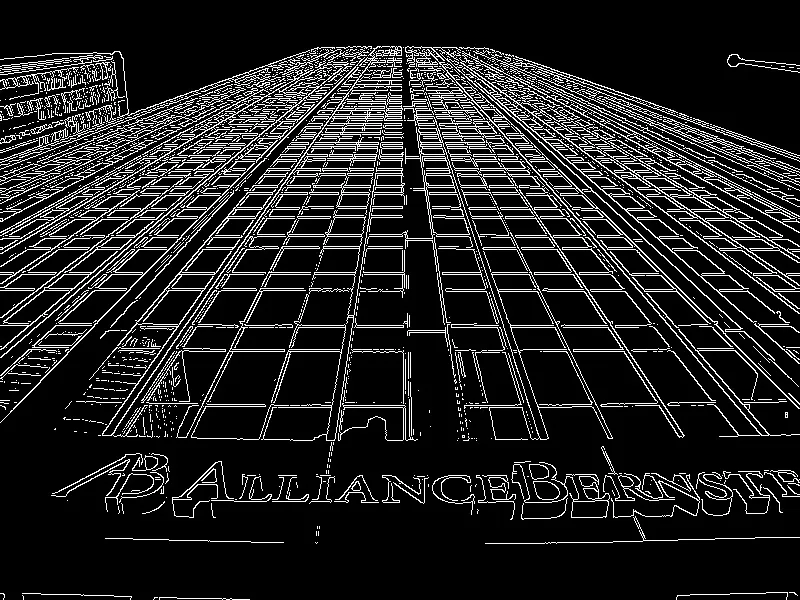

Canny edges

waitKey(10);

cv::Mat dx, dy;

// sobel derivative approximation X direction of edges image cv::Sobel(edges, dx, CV_32F, 1, 0);

// sobel derivative approximation Y direction of edges image cv::Sobel(edges, dy, CV_32F, 0, 1);

imwrite(“dx.jpg”, dx); imshow(“Sobel in x dirrection”, dx);

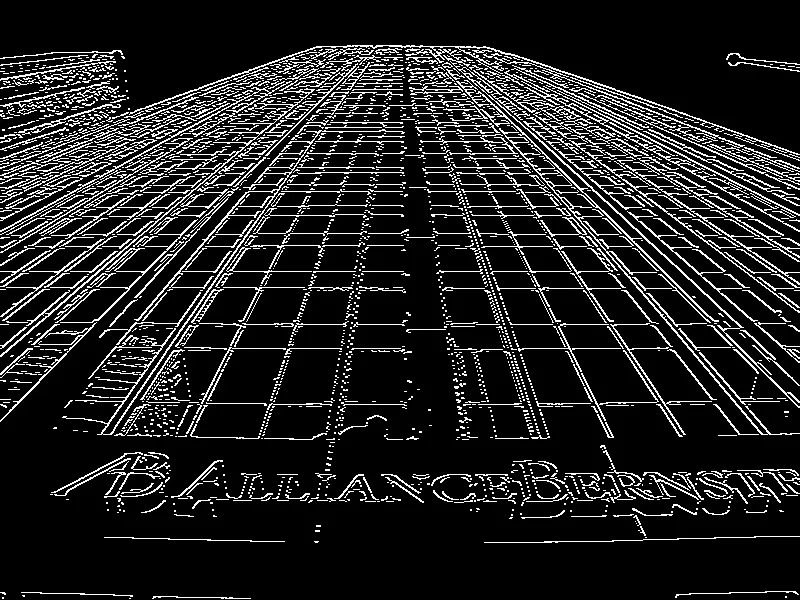

sobel derivatives

waitKey(10000); imwrite(“dy.jpg”, dy); imshow(“Sobel in y dirrection”, dy);

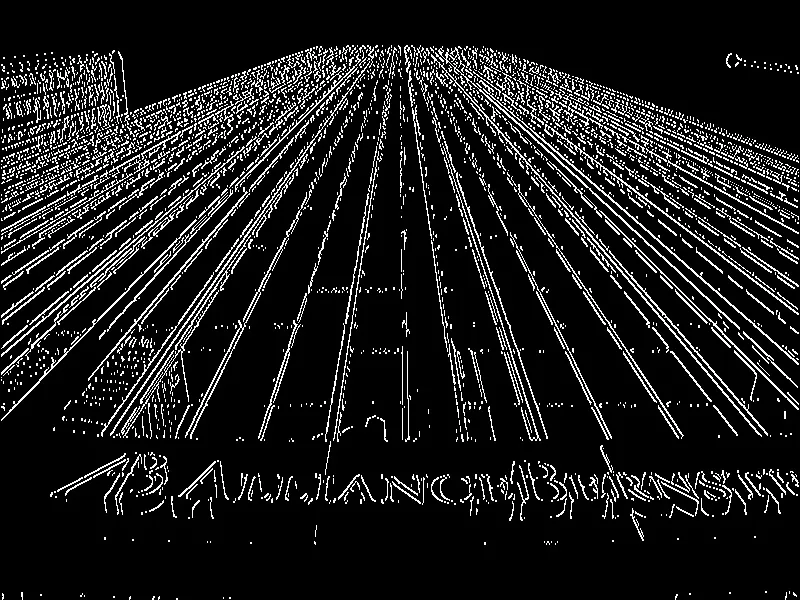

sobel derivatives

waitKey(10000);

**vector&lt;Vec4i> lines;**
       _// Find hough lines_

HoughLinesP(edges, lines, 1, CV_PI / 180, 100, 100, 10);

       _// Prepare blank mat with same sizes as image_

Mat Blank(image.rows, image.cols, CV_8UC3, Scalar(0, 0, 0));

   _// Draw lines into image and Blank images_
   **for (size\_t i = 0; i &lt; lines.size(); i++)**
    **{**
  **Vec4i l = lines\[i\];**

  **line(image, Point(l\[0\], l\[1\]), Point(l\[2\], l\[3\]), Scalar(0, 0, 0), 2, CV\_AA);**
  **line(Blank, Point(l\[0\], l\[1\]), Point(l\[2\], l\[3\]), Scalar(255, 255, 255), 2, CV\_AA);**

    **}**

imwrite(“houg.jpg”, image); imshow(“Edges”, image);

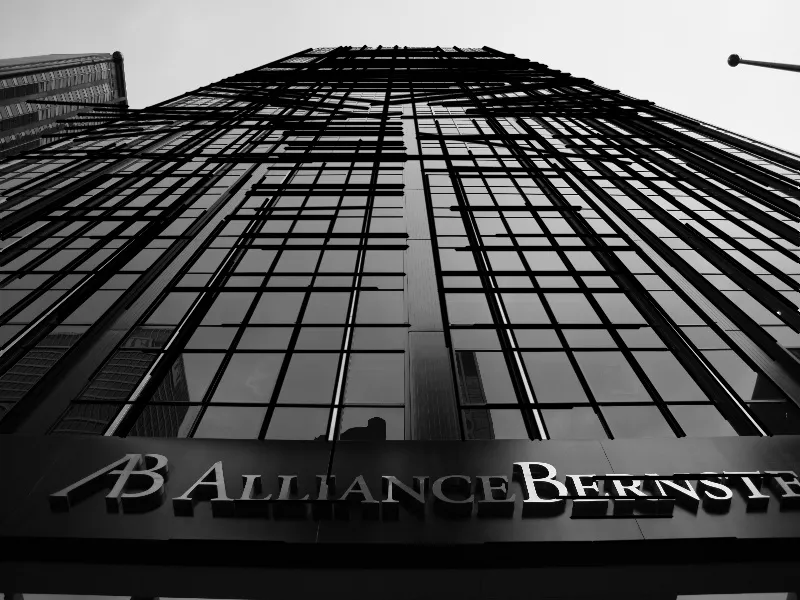

Hough lines

waitKey(10000);

imwrite(“houg2.jpg”, Blank); imshow(“Edges Structure”, Blank);

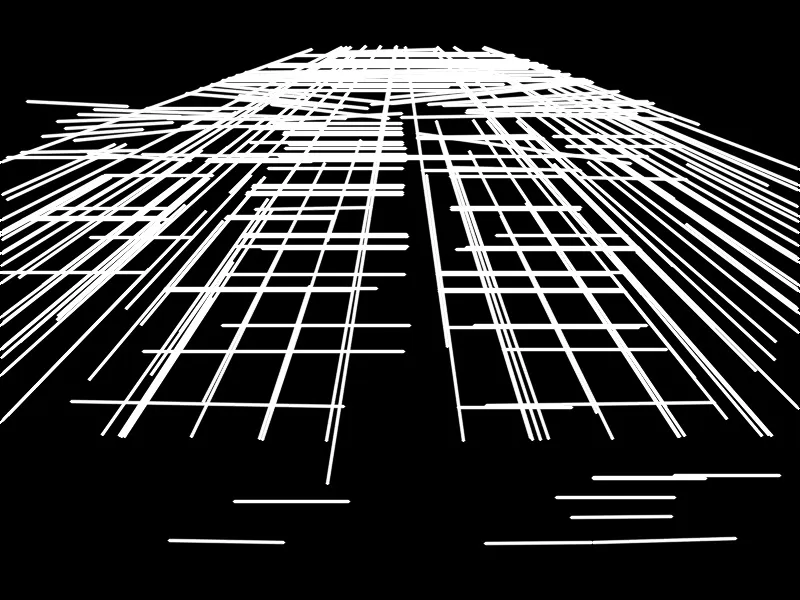

Hough lines

waitKey(10000);

}
